Bricks Concrete SDS Drill Bit Single Double Hammer Drill Bits

Name: Bricks Concrete SDS Drill Bit Single Double Hammer Drill Bits
Brand: XRTOOLS
Price: 0.28 USD

Quality Bricks Concrete SDS Drill Bit Single Double Hammer Drill Bits for sale

Use : concrete, bricks, walls, stones etc

Shank : SDS Hex

Material : Tungsten Carbide

Flute : single / double , U flute/ L flute

Size : 8mm - 20mm

Body material : 40Cr

Name : rotary hammer drill bits

Tip material : YG8C

Brand Name : XRTOOLS

Model Number : 12X160

Certification : ISO9000

Place of Origin : CHINA

MOQ : 100pcs

Price : $0.28-20/pc

Payment Terms : L/C, T/T, , Western Union

Supply Ability : 50000pcs/per day

Delivery Time : 25-30days

Packaging Details : PVC bag;Plastic tube,Blister Card,Plastic Hook

Finish : sandblasted

Process : Milled Flutes and Auto-Welded Tip

Contact Now

Bricks / Concrete 10mm Sds Hammer Drill Bits With Single / Double

introduction

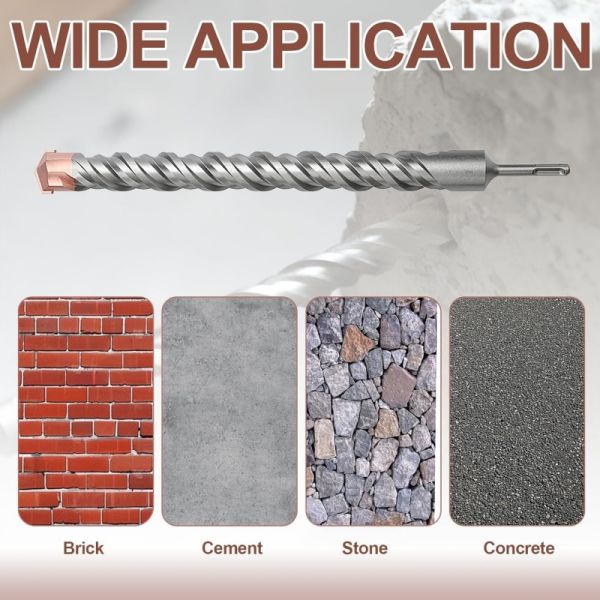

High quality sds hammer drill bits to work in masonry applications; brick, stone, concrete, and block

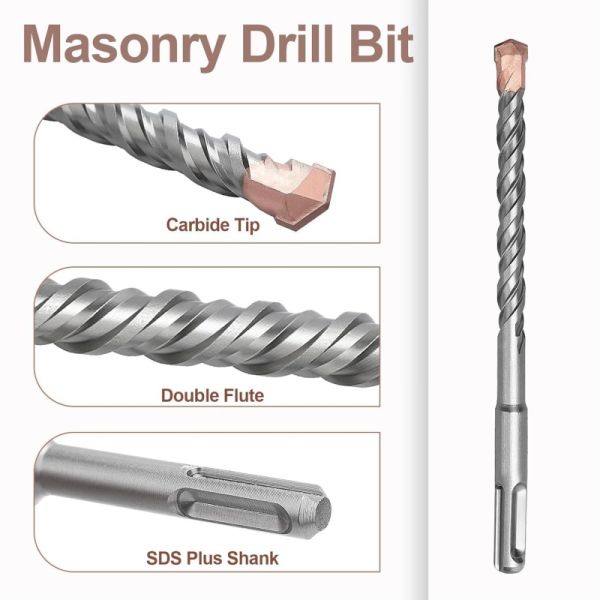

SDS hammer drill bit feature 2-flute self-centering carbide tip ensuring fast cut speeds and MAXIMUM life

Our SDS drill bits haExtended life – our concrete bits optimized design allows material to quickly exit the

hole while allowing the concrete hammer drill bit to remain cool

Bricks Concrete SDS Drill Bit Single Double Hammer Drill Bits

the differences of SDS Drill Bit :

	SDS & SDS Plus	SDS Max
Shank Size	Ø10mm	Ø18mm
Drill Size	5/32 to 1 1/8-inches(≈ 4mm to 28mm)	½” to 2-inches (≈ 12.5mm to 50mm)
Drill Size	5/32 to 1 1/8-inches(≈ 4mm to 28mm)	½” to 2-inches (≈ 12.5mm to 50mm)
Profile	Symmetric. (2 closes slots and 2 open grooves)	3 Open grooves and 2 closed slots.
PowerTool	SDS and SDS plus rotary hammers	SDS Max Roto hammers, Jackhammers and demolition hammers.
Uses	Light Duty Applications	Heavy-duty applications
Uses	1 Core bits up to 4” thin wall 2 Drilling ledger boards 3 Drill holes in brick, concrete and masonry up to 1” in diameter.	1 Core drill bits up to 6” walls 2 Concrete demolition 3 Professional demolition and construction work.

size:

Dia.		Flute Length	Overall Length
8.0	5/16	400	450
10.0	3/8	400	450
12.0	15/32	400	450
13.0	1/2	400	450
14.0	9/16	400	450
15.0	19/32	400	450
16.0	5/8	400	450
18.0	23/32	400	450
20.0	3/4	400	450
22.0	7/8	400	450
24.0	15/16	400	450
25.0	1	400	450
26.0	-	400	450
28.0	-	400	450
10.0	3/8	550	600
12.0	15/32	550	600
14.0	9/16	550	600
16.0	5/8	550	600
18.0	23/32	550	600
20.0	3/4	550	600
16.0	5/8	750	800
12.0	15/32	950	1000
14.0	9/16	950	1000
16.0	5/8	950	1000
18.0	23/32	950	1000
20.0	3/4	950	1000

SDS bits are designed for use with a rotary hammer drill. The SDS bit is placed into the end of the drill and is

held in place by twisting the chuck of the drill, locking the bit in the collar. The SDS masonry bit is not held

solidly in the chuck of the drill but slides up and down like a piston.
